CABLE REPLACMENT
INSTRUCTIONS
To purchase a cable replacement
kit click here

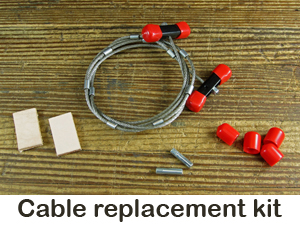

 The
cable replacement kit contains a replacement cable, new axels,
replacement end caps and new leather.

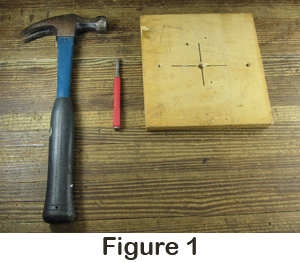

In order to replace the Bowmaster cable you
will need a hammer and a pin punch or nail punch. (Figure 1)
You will also need something to support the main body of the
Bowmaster while leaving a space for the axels to be pushed out.

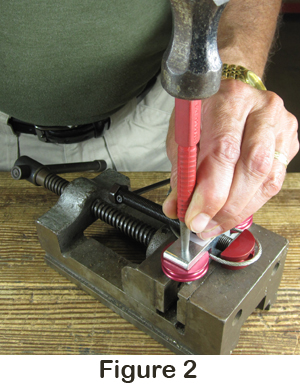

A board with a
hole in it works great or a vice with the jaws opened slightly
(Figure 1 & 2).

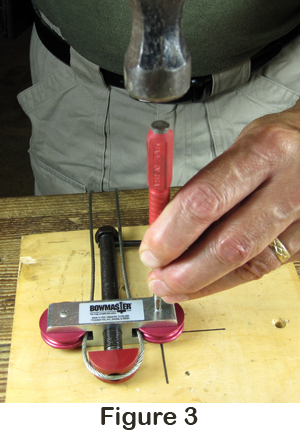

With the Bowmaster label side up, push the
axles out the back or bottom using a pin or nail punch.
(Figure 3) Once the axels are out you can remove the red
wheels
and cable.

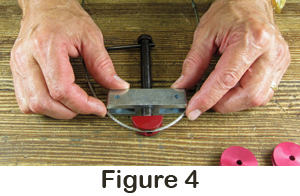

Turn the Bowmaster over with the label side
down and wrap the new cable around the half round. (Figure 4)

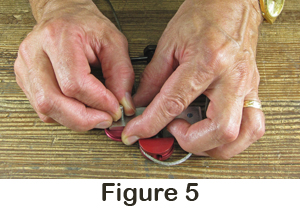

Install one wheel at a time making sure the
hole in the wheel is lined up with the hole in the many body.
Insert the axels by hand with the end opposite the expansion
groves going in first.
(Figure 5)

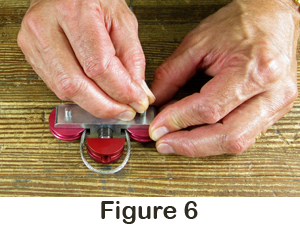

The axle will go in about two thirds of the
way by hand. (Figure 6)

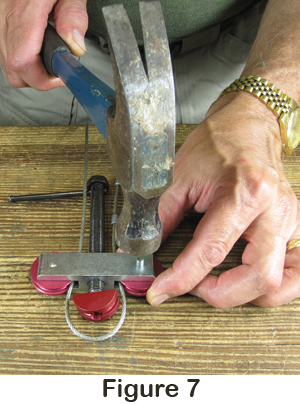

Then use a hammer to tap the axels in the rest of the way.
(Figure 7)
